DP2 Multi Purpose Support Vessel for Re-Sale

On offer is a brand new DP2 MPOSV of FOCAL 515ST design. She is in her final stages of commissioning and was launched in 07/2025. Her very interesting price makes her a great opportunity in the expanding and already tight OSV market. Act fast if you have use for such an asset.

Classification: CCS (IACS)

Year Built: 2025

Flag: P.R. CHINA

PRINCIPAL DIMENSIONS

Length Overall: 72m

LBP: 64.2m

Breadth Moulded: 20m

Depth Moulded: 7.2m

Draft Designed: 5m

Draft Scantling: 5.4m

Main Engine: 1800kwx2

Trial Speed: ABT. 11.5Kn

Service Speed: ABT. 10Kn

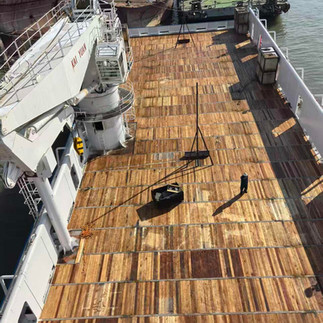

MAIN DECK

Deck Area: 750m2

Deck Strength: 7.5t/m2

POWER AND PROPULSION

2 x Azimuth Propeller

Bow Thruster: 650Kw×2

Main Generator: 350Kw×3 Emergency Generator: 90Kw×1 Shaft Generator: 1000Kw×2

SAFETY EQUIPMENT:

Life Jacket: 59 Person

Life Raft: 30 person x 6

Rescue Boat: 6 person x 1

DP SYSTEMS

DP 2 SYSTEM: DP Station ×2

Local Control Panel × 2 Laser Positioning System × 1 DGPS × 2

VRU × 3 UPS × 2

Conversion Switch × 1 (DP/IJS/Manual Control)

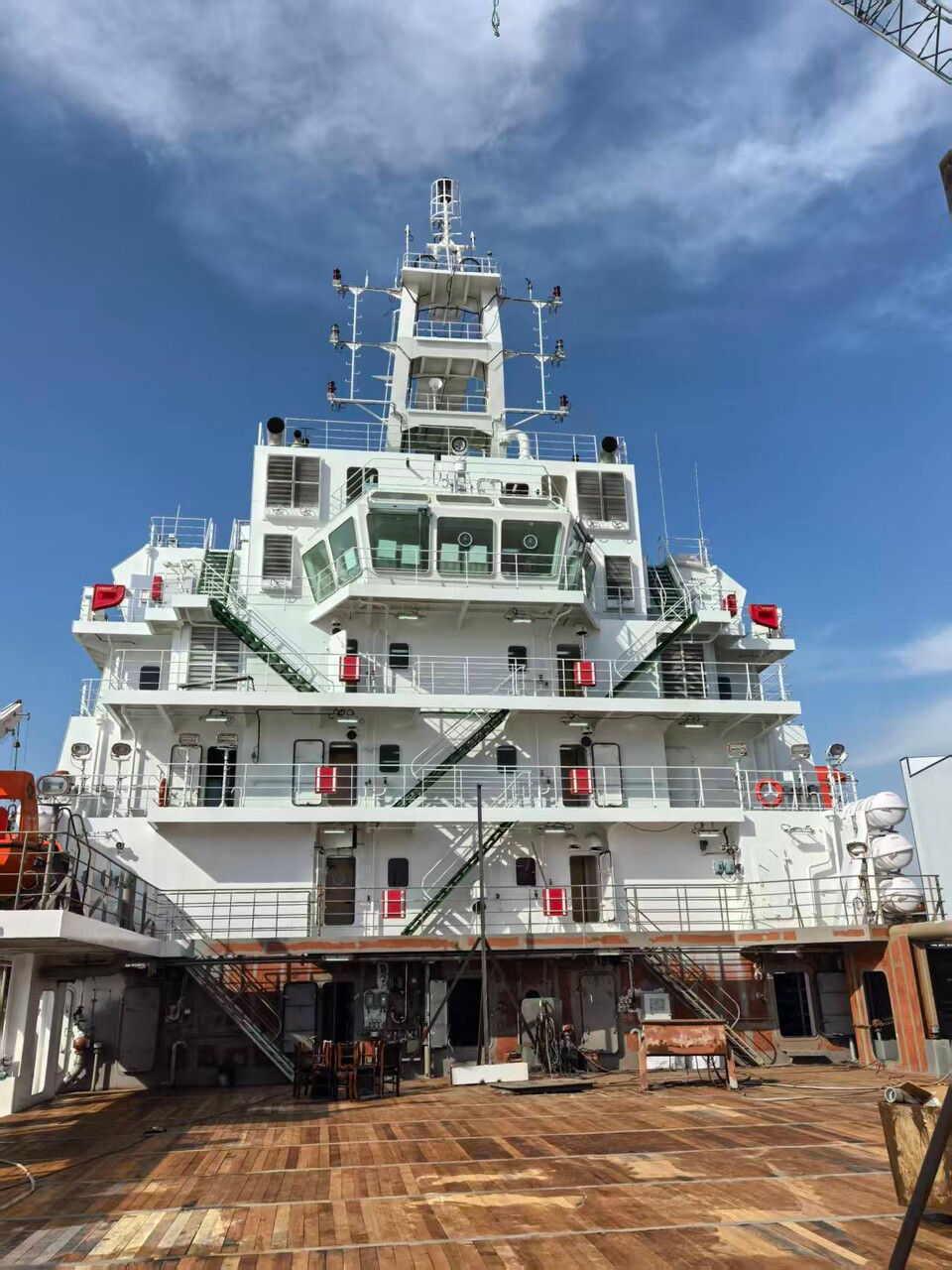

ACCOMODATION

Complement: Crew 16P +

Special personnel 43P

Cabins (No.):

9×1P

7×2P

9×4P

Total: 59P

CRANES

Deck Crane: 1 x 60t at 15m radius, 15t at 20m radius

PIPING SYSTEM:

General Service Pump: 100m3/hr×2, pressure head 80m Bilge Pump:

55m3/hr×2, pressure head 25m

Emergency Fire Pump:

35m3/hr×2, pressure head 65m

MOORING EQUIPMENT

Capstan: 60KN×15m/min×2

Winch: 109KN×9m/min(Windlass) 60KN×12m/min (Mooring Winch)

Anchor: 2835kg × 2 (High Holding Power Anchor)

Trial speed: ABT. 11.5KTS

Deck Area 750m², deck strength 7 . 5 t/m²

DP Class II

Location: China

Price: $22.5 mil (WOG)

All details without guarantee
