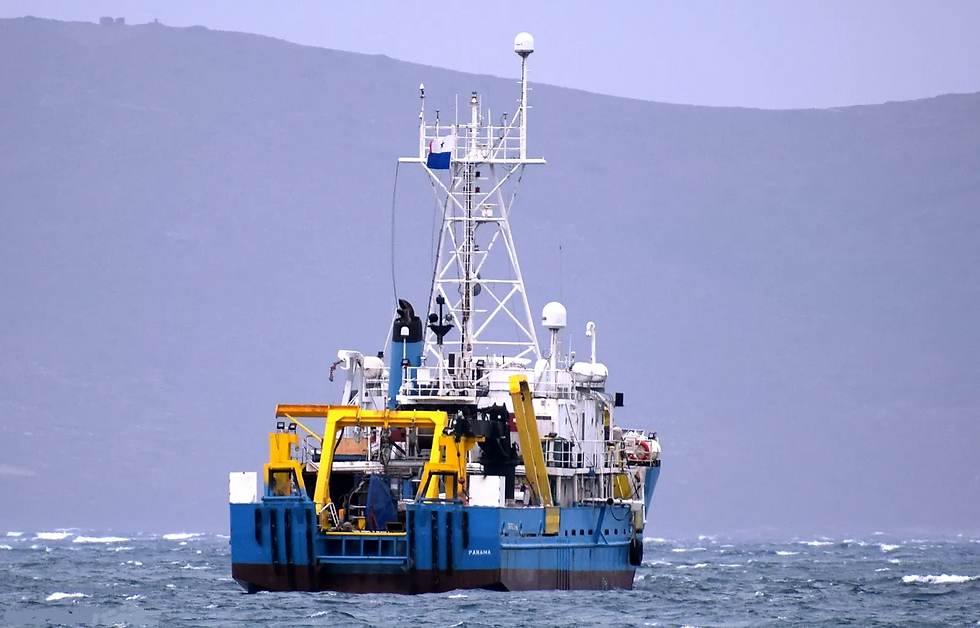

Fully Equipped Survey Vessel for Sale

On offer is an oceanographic vessel fully equipped with the latest technology of electronic equipment for Bathymetric and Oceanographic Surveys. A large array of winches and A-frames can support all types of survey and research equipment while the dedicated spaces onboard allow set up of every kind of scientific laboratory and accommodation of up to 21 passengers additional to the vessel’s crew. The ship can support ROV operations and provides a stable platform designed to cater for every research or survey operational requirement.

Rebuilt: 2002/2014

Builder: South Portland Engineering

Class: ABS

Flag: Cook Islands

Length overall: 47 m

Breadth: 9 m

Draft: 6 m

Service Speed: 10 knots

Endurance: 25 days

Crew: 11 рах

Accommodation: 21 pax

Displacement: 897 tonnes

Main Engine: General Diesel Emd-567C, V-12, 1200 Hp

Reduction Gear: Lufkin Marine 3:1, Two Speed Ahead, Single Astern

Bow Thruster: Hydraulic Omnithruster 250 Hp

Main Generators: 2 X Detroit Diesel/general Motors 6vt-92, 270 Kw

Emergency Gen: Perkins, 1000 Series, 70 Kw

FUEL

Capacity: 100 tonnes

Consumption: Approx. 4800 It/d

Key Features

• Hydrographic, trawl, constant tension,

net reel and oceanographic winches

• 80 m² deck space of which 16m²

protected

• Deck crane, three (3) A-frames and

movable gantry for ROV & AUV support

• 32 Person Accommodation

• Hull mounted Multibeam echo soundersystem (ELAC 3030)

Multibeam acquisition workstation andwater column Imaging workstation (Hypack)

Full Survey Spread On-Board for DataAcquisition & Processing (DGPS/ SBP/ SSS/

Magnetomers/ CPT Spread/ PCs & Software)

• Multidiscipline Marine Survey Team to SupportSurvey Operations - On-Board

Location: Eastern Med

Further details upon request.

All details without guarantee
