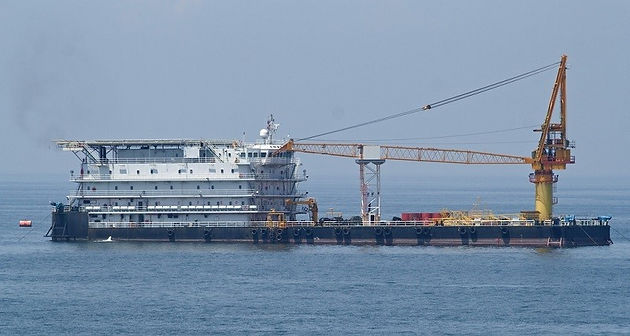

2010 Built 300 Pax Accommodation Work Barge in SEA

October 8, 2019

We have this 2010 Built 300 Pax Accommodation Work Barge available for sale, currently operating in West Malaysia.

Year: 2010
Built:  Batam, Indonesia
Class: ABS + A1 (E) (M) (P) Barge MODU CODE

DIMENSIONS
Length Overall: 100m
Breadth Moulded: 30.50m
Depth Moulded: 6.50m
Design Draft: 5.00m
Dwt @ design draft: 8,850mt
Clear Deck Area: 1720m²
Gross Tonnage: 8500MT

MACHINERY
Air Compressors: 2 x Ingersoll Rand 830cfm
Generators: 4 units Cummins VTA28-DM 560kW 440/3/50
Emergency Gen:1 unit Cummins KTA19 320kW
Water Maker: 2 x 50tons/day

DECK EQUIPMENT
8 Point Anchor: 4 X double drum electro-hydraulic Winches
Mooring Winches: Drum cap for 1,200m X 38mmØ IWRC
Towing Gear: Towing Bridle, Stud link chain with SMIT bracket & fairleads

LIFTING EQUIPMENT
Main Crane: Amclyde Unit Model 35000 HD Pedestal Crane,
150ft Boom Dynamic SWL: Main 68MT, Aux 9MT
Provision Crane:  10 tonne @ 1 m radius
Main Deck Strength: 15 tonnes/M²

OTHER FACILITIES
Freezer: 1 X Freezers, Meat/Fish
Chiller: 1 X Chiller
Galley: 1 X Galley
Hospital: 1 X 4 bed Hospital
Radio / Control Room: Fitted with SSB & Air Band radios
Mess rooms are available for 135 persons at a time
Offices: 4 X level 2
Conference Rooms: 1 X 20 pax on level 2
TV Rooms: 1 X fitted with LCD TV on main deck
Video Rooms: 1 X with sofa & armchair on main deck
Prayer Rooms: 2 X allocated at level one
Gymnasiums: 1 X with gym equipment
Water Maker: 2 X 50T/day Reverse Osmosis
Workshop: 1 workshop at the main deck

ACCOMMODATION
1-Bed: 6 cabins (6 men)
2-Bed: 37 cabins (74 men)
4-Bed: 55 cabins (220 men)
Total No. of Beds: 300
- Fully air conditioned, complies to ILO 92, MODU, IMO Resolution A468 (XII)

TANK CAPACITIES
Fuel Oil Tank: 1,050 tonne (98%)
Fresh water Tank: 1,700 tonne (98%)
Water Ballast: 6,800 tons (98%)

HELIDECK
2.8T/m² loading suitable for Sikorsky S-92N helicopters

NAVIGATION AND COMMUNICATIONS EQUIPMENT
GPS: 1 X unit
DGPS: 1 X unit
Radar: 1 X unit
SSB Radio: 3 X units
VHF Radio: 1 X unit
Weather fax: 1 X unit
Echo Sounder: 1 X unit
Aeronautical: 1 X unit
Transceiver: 1 X unit

FIRE FIGHTING, SAFETY, RESCUE & OIL POLLUTION EQUIPMENT
Life Rafts: 25 person X 24 Units
Fire Extinguishers: Comply to MODU
Fixed CO2: For paint store and engine room
Rescue Boat: 1 X 6 persons RHIB c/w davit launch
Helideck Foams: Foam tank and 4 x Foam Monitor on helideck
Smoke Detector System: In accommodation
Water Sprinkle System: In accommodation
Heat Detector System: In engine room



Please register your interest.





Any use, disclosure, forward, printing or copying of this post without expressed permission is strictly prohibited. All particulars are believed to be correct but not guaranteed. All offers are made subject to prior sale, changes in specifications or price and to withdrawal from sales list without notice. Copyright © 2019 Wissmann & Associates LLC, All rights reserved.
